Product information

Description

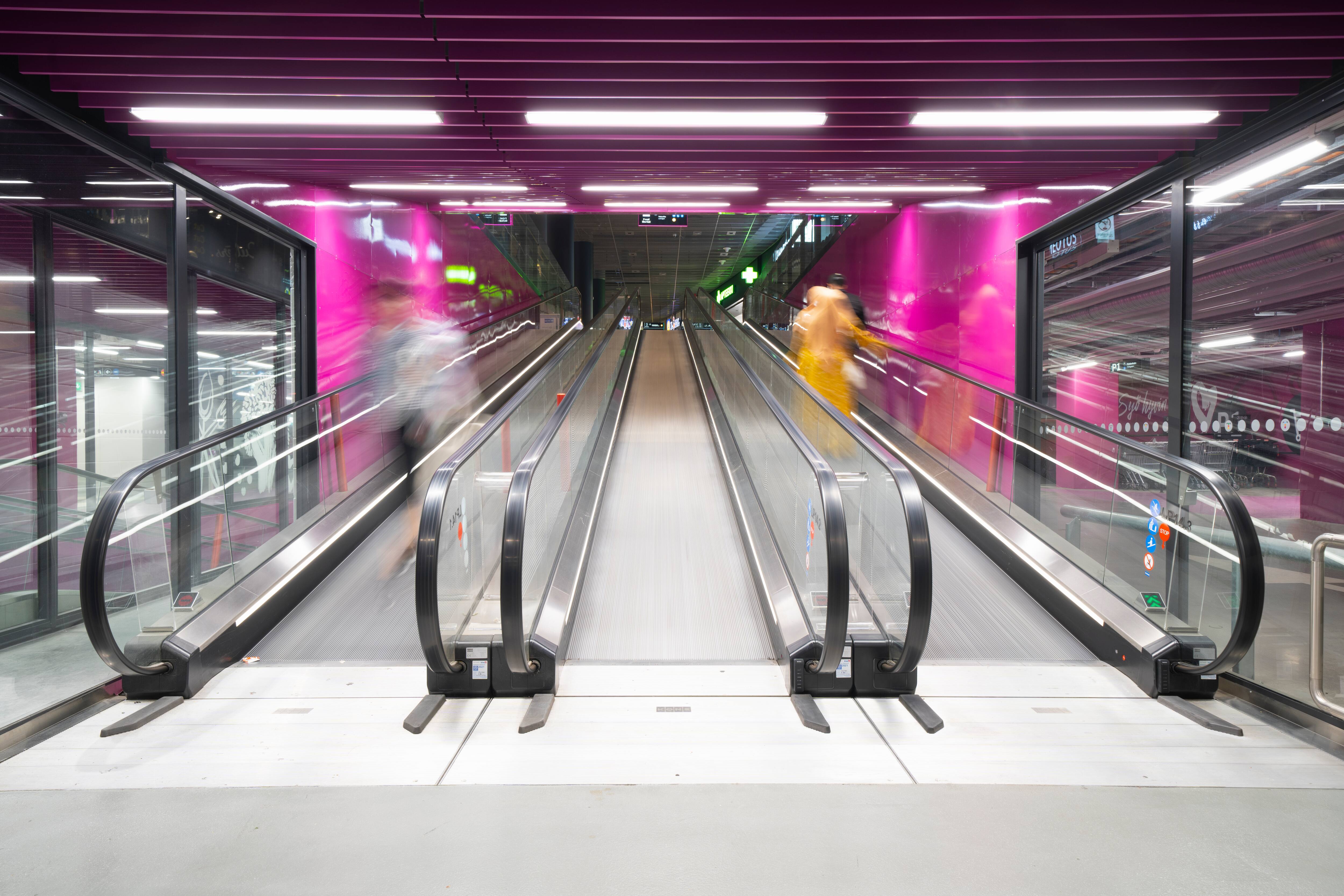

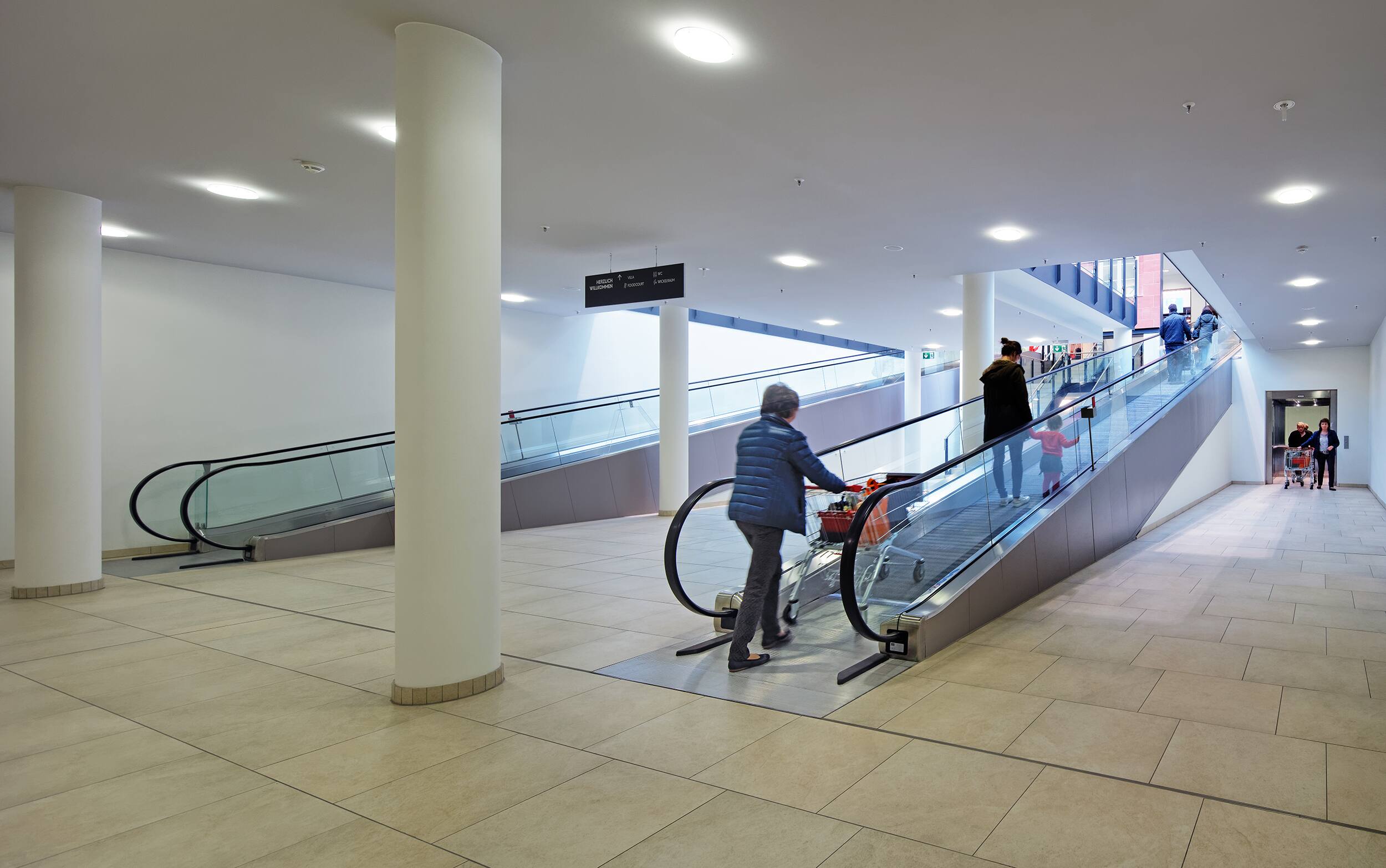

The KONE TravelMaster™ 115 is an inclined autowalk provides easy and safe access for environments with demanding people flow needs, such as shopping centers, department stores, supermarkets and hypermarkets.

Specifications

  • Operational environment: indoor, semi-outdoor
  • Speed: 0.5 m/s
  • Inclination: 10º, 12º
  • Pallet width: 1000 mm
  • Vertical rise: up to 7 m

Safety

  • Safety is the starting point for every KONE solution. KONE TravelMaster 115 conforms to all local and international safety codes.
  • We offer extensive safety options to reduce risk of end-user accidents.

Options and highlights

Travelmaster 115

ENERGY-EFFICIENCY

Energy-efficient people flow that keep your building moving:

  • Smart operational modes and inverter optimize energy consumption under different load conditions
  • Long lasting LED lighting is up to 80% more efficient than fluorescent lighting and lasts up to 10 times longer
  • Energy efficient inverter provides smooth speed regulation during standby operation and minimizes energy consumption at full speed
  • The optional regenerative technology cuts power consumption by recycling energy and feeding it back into the system
Travelmaster 115

SAFETY

Peace of mind with the latest safety technology:

  • High (1100 mm)balustrade improves customer safety in building with multiple autowalks levels layout
  • Pallet loose monitor and Sprialock threaded screw increase safety for passengers and reliability on our pallets
  • New traffic signalization solutions to provide extra guidance
  • Fall-prevention barrier and extended balustrades provide additional passenger protection
  • Extensive monitoring options such as KONE Remote Monitoring™ and KONE E-link™ to integrate with your building management systems
Travelmaster 115

DESIGN

Proven, reliable design to provide safe people flow and maximum availability in environments with medium to high traffic:

  • Reduced dimensions free more space for commercial activities
  • Real inclinations allows a better alignment and an increased visual appearance of the building
  • Flexible intermediate support placement allows easier integration with the building
  • Innovative and attractive lighting solutions that also improve passenger guidance and safety
  • Wide range of design options to create stunning visual effects and perfectly match your building’s architecture
  • High quality component finishes and a harmonized look and feel throughout the KONE product portfolio

Contact us for a detailed cost estimate

Tools and downloads

More Tools And Downloads

Escalator and autowalk solutions

Product name
Type
Segment
Maximum rise
Speed
Inclination
KONE TransVario direct drive available
24/7 Connected Services available
Energy-efficiency class
TravelMaster 110
EscalatorCommercial, retail, hotel, office, multi-use, stadium, medical
13 m
0.5 m/s30°, 35°
TravelMaster™ 110T (factsheet)YesA+++
TravelMaster 115
Inclined autowalkCommercial, retail, hotel, office, multi-use, stadium, medical
7 m
0.5 m/s
10°, 12°

YesA+++
TransitMaster 120
EscalatorInfrastructure
15 m
0.5, 0.65, 0.75 m/s27.3°, 30°, 35°TransitMaster™ 120T (factsheet)YesA+++
TransitMaster 140
EscalatorInfrastructure
35 m
0.5, 0.65, 0.75 m/s27.3°, 30°TransitMaster™ 140T (factsheet)YesA+++
TransitMaster 165
Horizontal autowalkInfrastructure
100 m length
0.5, 0.65, 0.75 m/s
0-6°

YesA+++
